Âncoras SutureTak®

As âncoras de sutura SutureTak são âncoras de encaixe labral disponíveis nos materiais BioComposite, PLDLA ou PEEK. As opções de âncora Bio e BioComposite contêm uma sutura moldada para reforçar a resistência da âncora e orifício de sutura. A SutureTak de PEEK é uma âncora de sutura não absorvível com aleta material que oferece resistência superior contra abrasão devido ao baixo coeficiente de fricção do PEEK.O sistema de implante SutureTak simplifica a inserção usando um guia para preparar o orifício piloto precisamente na borda da cavidade glenoidal. A broca é removida e o implante é inserido através do mesmo guia, criando uma técnica simples e reprodutível.As âncoras estão disponíveis nos diâmetros 2,0, 2,4, 3,0 e 3,7 mm.

Veja Mais

As âncoras de sutura SutureTak são âncoras de encaixe labral disponíveis nos materiais BioComposite, PLDLA ou PEEK. As opções de âncora Bio e BioComposite contêm uma sutura moldada para reforçar a resistência da âncora e orifício de sutura. A SutureTak de PEEK é uma âncora de sutura não absorvível com aleta material que oferece resistência superior contra abrasão devido ao baixo coeficiente de fricção do PEEK.O sistema de implante SutureTak simplifica a inserção usando um guia para preparar o orifício piloto precisamente na borda da cavidade glenoidal. A broca é removida e o implante é inserido através do mesmo guia, criando uma técnica simples e reprodutível.As âncoras estão disponíveis nos diâmetros 2,0, 2,4, 3,0 e 3,7 mm.

Veja Mais
Vea evidências científicas

Recursos educacionais e produtos

Todos os recursos
Todos os produtos
Videos
(15)
arrow_drop_down
Videos
Documentos
(9)
arrow_drop_down
Documentos
English
(24)
arrow_drop_down
Línguas
Limpar todos os filtros

Vídeos — Técnicas cirúrgicas (3)

Bankart Repair Utilizing FiberWire® SutureTape™ and the SutureSnare™ Suture Passer
Amr Elmaraghy, MD
05:10 | English | 01/06/2017 | VID1-00799-EN B
Double Row Labral Repair
Steve E. Jordan, MD
07:50 | English | 01/06/2017 | VID1-00828-EN B
Superior Capsular Reconstruction Cadaveric Demonstration
Christopher Adams, MD
07:19 | English | 07/15/2015 | VID1-00452-EN C

Guias de técnicas cirúrgicas (1)

SutureTak® Bankart & SLAP Repair
English | 01/27/2021 | LT1-0507-EN N

Animações — Técnica cirúrgica (1)

PASTA Bridge Animation
01:34 | English | 12/16/2013 | AN1-00001-EN A

Apresentação vídeos (10)

FiberWire® Suture Update Featuring 1.3-mm SutureTape
Tom Dooney
02:36 | English | 09/06/2017 | VPT1-00907-EN C
Anterior Instability and SLAP Repair: Current Concepts
Kyle Anderson, MD
08:53 | English | 09/16/2014 | VPT1-00279-EN A
Histologic and Biomechanical Analysis of Two Small Glenoid Anchors for use in Labral Repair
James L. Cook, DVM, PhD
10:21 | English | 03/05/2014 | VPT1-00216-EN A
First-Time Anterior Dislocators: What to Do and How to Do it
Jim Bradley, MD
18:55 | English | 06/24/2013 | VPT1-0003-EN A
Knot Tying Studies
Bryan Hanypsiak, MD
14:16 | English | 03/22/2013 | VPT1-0001-EN A
Case Presentation: What Your Knots Are Doing To The Rotator Cuff
Neal ElAttrache, MD
04:56 | English | 02/28/2012 | VPT1-0008-EN A
PASTA Bridge: Technique and Pull-out Testing
Alan M. Hirahara, FRCS, MD
08:04 | English | 02/27/2012 | VPT1-0014-EN A
Double Row Labral Repair: Technique & Indications
Chris Ahmad, MD
12:13 | English | 02/27/2012 | VPT1-0009-EN A
Remplissage: Why I use It
Stephen S. Burkhart, MD
Presentation Videos | 04:56 | English | 02/27/2012 | VPT1-0019-EN A
Managing Glenoid Bone Loss: Bony Bankart Bridge
Peter J. Millett, MD, MS
Presentation Videos | 03:52 | English | 02/27/2012 | VPT1-0011-EN A

Atualizações científicas (1)

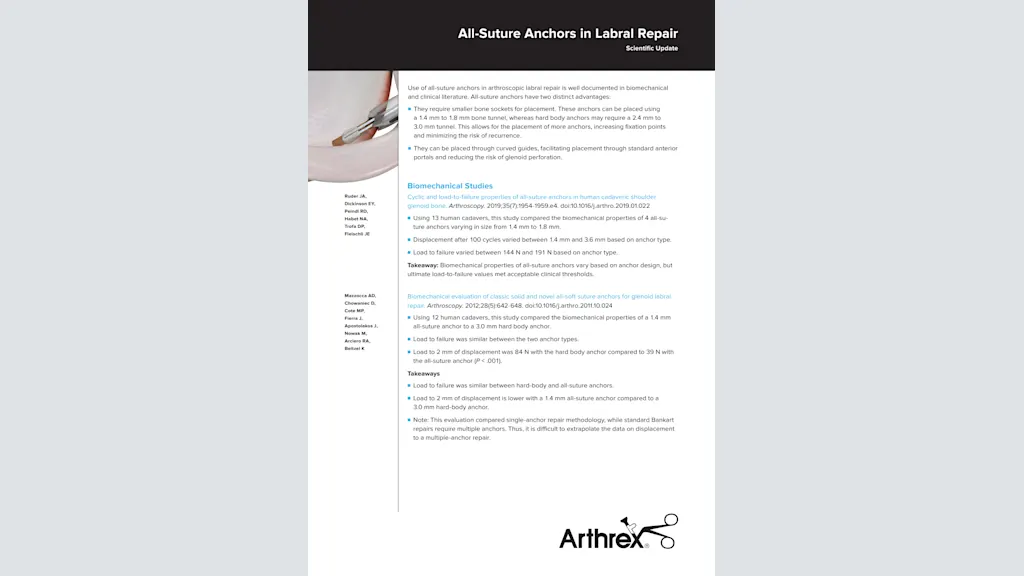

All-Suture Anchors in Labral Repair Scientific Update
English | 08/17/2020 | DOC1-000334-en-US A

Brochuras (1)

CoolCut™ ShaverDrill™ Instruments
English | 02/12/2021 | LB1-000026-en-US C

Catalogs (1)

Shoulder and Elbow - Next Generation in Repair and Reconstruction 2022
English | 03/16/2022 | LB1-0220-EN AA

Relatórios de resultados (1)

SLAP Repair: Knotless vs Knotted
English | 06/19/2020 | CC1-00023-EN H

Vídeos apresentações de casos (1)

Tips and Pearls for Using Knotless Tensionable Anchor Technology
Tal S. David, MD
03:36 | English | 11/14/2019 | VID1-000417-en-US A

White Papers (5)

Histological Analysis of the 2.4 mm BioComposite™ SutureTak® and JuggerKnot Suture Anchor
English | 04/05/2012 | LA0528 B
Biomechanical Comparison of JuggerKnot and 2.4 mm BioComposite SutureTak®
English | 06/10/2010 | LA0526 A
BioComposite™ SutureTak®, BioComposite™ Corkscrew® FT and BioComposite™ PushLock®: An In Vitro Degradation Study
English | 02/05/2009 | LA0523 A
Neue Materialien in der Sportmedizin
German | 05/17/2006 | LA0200G A
Tensile and Cyclic Testing of Multiple Suture Anchors for Glenoid Labral Repair: A Biomechanical Study
English | 05/02/2006 | LA0507 A

AR-1934BCF-20

BioComposite SutureTak Suture Anchor, 2 mm x 12 mm w/#1 FiberWire, qty. 5

AR-1934PF-20

PEEK SutureTak Suture Anchor, 2 mm x 12 mm w/#1 FiberWire, qty. 5

AR-1934D-20

Drill, for 2 mm SutureTak

AR-1934D-20-1

Drill, for 2 mm SutureTak (for hard bone)

AR-2948D

Curved Insertion Kit for 2.0 mm SutureTak with Curved Spear, Obturator and 1.7 mm Flexible Drill

AR-1934-20DS

2 mm SutureTak Disposables Kit (includes: Disposable Spear and AR-1934D-20)

AR-1934PI-20

2 mm SutureTak Percutaneous Insertion Kit (includes: disposable 17 gauge Spinal Needle, 1.1 mm Nitinol wire, Portal Dilator, Spear and drills)

AR-1986

Spear, Trocar and Blunt Obturator for 2 mm SutureTak

AR-1934BCF-24

BioComposite SutureTak Suture Anchor, 2.4 mm x 12 mm w/#2 FiberWire, qty. 5

AR-1934BCF-24-2

BioComposite SutureTak Suture Anchor, 2.4 mm x 12 mm w/two #2 FiberWire

AR-1934PF-24

PEEK SutureTak Suture Anchor, 2.4 mm x 12 mm w/#2 FiberWire

AR-1934D-24-1

Drill, for 2.4 mm SutureTak (for hard bone)

AR-1934D-24-2

Drill, for 2.4 mm SutureTak (for very hard bone)

AR-1934-24S

2.4 mm SutureTak Instrument Set

AR-1934-24DS

Disposables Kit, 2.4 mm Bio-SutureTak (includes: Step Drill and Spear with Trocar)

AR-1948R

Offset Guide, for FiberTak and 2.4 mm SutureTak

AR-1948CT

Spear w/Circumferential Teeth, Trocar Tip Obturator for FiberTak and 2.4 mm SutureTak

AR-1945S

Disposable Spear, with Trocar Tip Obturator, for 2.4 mm SutureTak and 2.4 mm FASTak

AR-1934PI

2.4 mm SutureTak Percutaneous Insertion Kit (Includes: disposable 17-gauge Spinal Needle, 1.1 mm Nitinol wire, Portal Dilator, Spear and Drills)

AR-1934BCT-2

BioComposite SutureTak Suture Anchor, 3 mm x 14.5 mm w/two 1.3 mm SutureTape (Blue and Black/White), qty. 5

AR-1934BCT

BioComposite SutureTak Suture Anchor, 3 mm x 14.5 mm with 1.3 mm SutureTape (White/Blue), qty. 5

AR-1934BCF

Suture Anchor, BioComposite SutureTak with #2 FiberWire

AR-1934BCF-2

BioComposite SutureTak Suture Anchor, 3 mm x 14.5 mm w/ two #2 FiberWire

AR-1934BCFT

BioComposite SutureTak Suture Anchor, 3 mm x 14.5 mm w/#2 TigerTail

AR-1934BCFT-2

BioComposite SutureTak Suture Anchor, 3 mm x 14.5 mm w/ two #2 TigerTail

AR-1934PST-2

PEEK SutureTak Suture Anchor, 3 mm x 14.5 mm w/two 1.3 mm SutureTape (Blue and Black/White), qty. 5

AR-1934PS

PEEK SutureTak Suture Anchor, 3 mm x 12.4 mm w/#2 FiberWire

AR-1934PS-2

PEEK SutureTak Suture Anchor, 3 mm x 12.2 mm w/two #2 FiberWire, qty. 5

AR-1934BF

Bio-SutureTak Suture Anchor, 3 mm x 14.5 mm w/two #2 FiberWire, qty. 5

AR-1934BF-2

Bio-SutureTak Suture Anchor, 3 mm x 14.5 mm w/two #2 FiberWire, qty. 5

AR-1934BFT

Bio-SutureTak Suture Anchor, 3 mm x 14.5 mm w/#2 TigerTail, qty. 5

AR-1934BFT-2

Bio-SutureTak Suture Anchor, 3 mm x 14.5 mm w/two #2 TigerTail, qty. 5

AR-1934BNF

Bio-SutureTak Suture Anchor, w/Needles, 3 mm x 14.5 mm, w/#2 FiberWire (for open procedures), qty. 5

AR-1250LT

2.4 mm Drill for 3 mm SutureTak

AR-1250LTC

Step Drill for 3 mm SutureTak (for hard bone)

AR-1250LTSR

ShaverDrill, for 3.0 mm SutureTak

AR-1257

Drill, Spade Tip, for 3 mm SutureTak

AR-1934S

3 mm SutureTak Instrument Set

AR-1934DS-2

Disposables Kit for 3 mm SutureTak (includes: Spear/Trocar AR-1949S and Drill AR-1250LT)

AR-1934PI-30

3 mm SutureTak Percutaneous Insertion Kit (includes: spear, dilator, needle with stylet, guide pin, and step drill)

AR-1949S

Disposable Spear, Trocar Tip Obturator for 3 mm SutureTak, 2.4 mm and 2.9 mm PushLock

AR-1934R

Guide for 2.8 mm FASTak II, 3.0 mm SutureTak, Trocar and 2.9 mm PushLock, Offset

AR-1934GS

Disposable Metal Offset Guide for use with 2.8 mm FASTak II, 3 mm SutureTak and 2.9 mm PushLock

AR-1946

Spear for 2.8 mm FASTak II, 3.0 mm SutureTak, Trocar and 2.9 mm PushLock Trocar Tip Obturator with Circumferential Teeth

AR-1934P

Punch for 3 mm SutureTak

AR-1256

Drill, Short Spade Tip, for SutureTak with Needles

AR-1326G

Spear, Short, for Bio-FASTak with Needles and SutureTak with Needles

AR-6520

Portal Dilation Set (4 mm, 6 mm, and 8 mm Dilators)

AR-6521

Needle for Portal Dilator, 1.5 mm, qty. 5 (Must Purchase with AR-6520)
