Finished Product

AR-9095-55

Human

Aktivierungsinstrumentengriff, Trochanter Nagel

Schenkelhalsschrauben-Entfernunginstrument, Fassstange

Schenkelhalsschrauben-Entfernungsinstrument, Fassstangenmutter

Lag Screw Removal Tool, Capturing Rod Nut

Führungsdrahthülse, verriegelbar, 3,2mm

Röntgendurchlässiger Zielarm, 125°, Trochanter-Nagel

Radiolucent Target Arm, 125°, Troch Nail

Röntgendurchlässiger Zielarm, 130°, Trochanter-Nagel

Radiolucent Target Arm, 130°, Troch Nail

Kugel-Hex-Schraubendreher, Large Hudson, 9/32"

Trauma Lower Extremities

Product

The Arthrex trochanteric nail is a next-generation hip nail that addresses the remaining shortcomings of current systems and consists of three nail types—short nail, long nail, and the innovative ES nail.
Telescoping Lag Screw—Self-contained collapse within the lag screw prevents lateral lag screw irritation.
ES Nail Option—Combines the mechanical advantages of a long nail with the ease of a short nail. It extends through the isthmus of the bone, which can reduce distal tip stress risers, potential “pendulum” effects, and risks of peri-prosthetic fractures associated with short nails.1 The ES hole is easily targeted through the nail jig.
Biological Augmentation—Allows for the delivery of orthobiologics (BoneSync™ cement, autologous blood products, AlloSync Pure™, etc) through the lag screw instrumentation, prior to final screw seating.
Advanced Instrumentation—Designed to reduce surgical pain points and facilitate surgical work flow.
<ul>
 <li>Lag screw locking through the inserter (no set screw required)</li>
 <li>Captured distal 5.0 mm screws</li>
 <li>Calibrated drill bits</li>
 <li>Jig removal through the more lateral impactor attachment hole</li>
</ul>
Reference:
1. Wright RC, Yacoubian SV, Salzman GA, Raven RB 3rd, Falkinstein Y, Yacoubian SV. The extended-short nail system, a novel concept in the management of proximal femur fractures. Am J Orthop (Belle Mead NJ). 2011;40(12):630-635.

Trochanteric Nail System

Child (D)

Trauma Upper Extremities

Procedure

The Arthrex trochanteric nail is a next-generation hip nail that addresses the remaining shortcomings of current systems and consists of three nail types—short nail, long nail, and the innovative ES nail.
Telescoping Lag Screw—Self-contained collapse within the lag screw prevents lateral lag screw irritation.
ES Nail Option—Combines the mechanical advantages of a long nail with the ease of a short nail. It extends through the isthmus of the bone, which can reduce distal-tip stress risers, potential “pendulum” effects, and risks of periprosthetic fractures associated with short nails.1 The ES hole is easily targeted through the nail jig.
Biological Augmentation—Allows for the delivery of orthobiologics (BoneSync™ cement, autologous blood products, AlloSync Pure™, etc) through the lag screw instrumentation, prior to final screw seating.
Advanced Instrumentation—Designed to reduce surgical pain points and facilitate surgical workflow.
<ul>
 <li>Lag-screw locking through the inserter (no set screw required)</li>
 <li>Captured distal 5.0 mm screws</li>
 <li>Calibrated drill bits</li>
 <li>Jig removal through the more lateral impactor attachment hole</li>
</ul>
Reference:
1. Wright RC, Yacoubian SV, Salzman GA, Raven RB 3rd, Falkinstein Y, Yacoubian SV. The extended-short nail system, a novel concept in the management of proximal femur fractures. Am J Orthop (Belle Mead NJ). 2011;40(12):630-635.

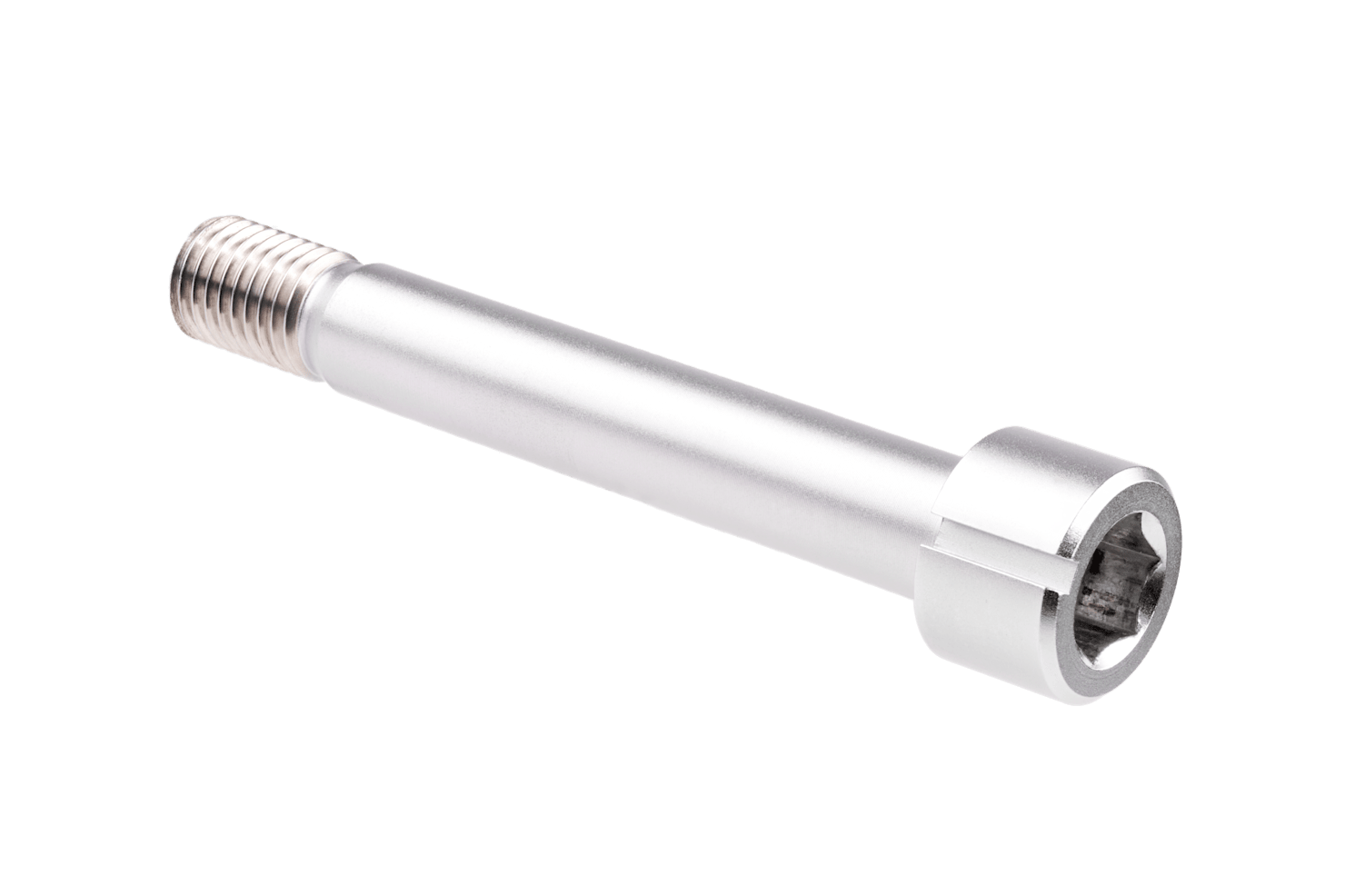

Targeting Arm Locking Bolt

AR-9095-55

AR-9095-55 is a Set Item Of (1)

AR-9095S-01
