Válvula para cánula de flujo de entrada

Finished Product

AR-6501

Imaging and Resection

Product

As part of the DualWave arthroscopy pump, the Autoclavable DualWave Remote Control provides finger touch access to pressure adjustment, LAVAGE and RINSE modes, shaver suction levels and the RUN/STOP button.
The DualWave Foot Pedal allows the user to control both pressure and flow rates with the LAVAGE and RINSE pedals.
The DualWave Cart is a stable, mobile stand that conveniently holds up to (4) 3-liter bags of irrigation fluid at shoulder height for easy access.

DualWave™ Arthroscopy Pump Accessories

Shaver-Interface Kabel für DualWave Pumpe 1.2 m

Cable de alimentación, resector DualWave, 10.16 cm

Cabo, alimentação, DualWave-Shaver, 10.2 cm

Cabo, alimentação, DualWave-Shaver, 10.2

Shaver-Interface Kabel für DualWave Pumpe 2.4 m

Cable de alimentación, resector DualWave, 20.32 cm

Cabo, alimentação, DualWave-Shaver, 20.3 cm

Irrigation Sheath Adapter, Dyonics

Zuflussadapteur für Dyonics High Flow Arthroskophülse, VE20, steril, SU

Adaptador para vaina de irrigación para Dyonics

Adaptador de bainha de irrigação para Dyonics

Child (D)

DualWave outflow tubing allows the <a href="https://www.arthrex.com/imaging-resection/dualwave-arthroscopy-pump" title="DualWave™ arthroscopy pump">DualWave™ arthroscopy pump</a> to function as a complete, integrated&nbsp;<a href="https://www.arthrex.com/imaging-resection/fluid-management" title="fluid management">fluid management</a> system.


<code>&lt;u&gt;</code>Outflow Tubing<code>&lt;/u&gt;</code>
DualWave outflow tubing provides an automated solution for controlling distention during complex arthroscopic procedures to provide clear, consistent, turbulence-free visualization. The outflow tubing’s two suction lines, one for the shaver system and another for a cannula suction line, can be attached to a working cannula in the shoulder or an outflow cannula in the knee. The DualWave pump will automatically switch between suction lines as needed. The tubing also allows the pump to regulate both inflow and outflow in the joint space.

The DualWave outflow tubing reduces fluid waste and helps to maintain proper distention. The suction outflow can be attached to a vacuum line or allowed to drain into the Arthrex waste collection bag.
<code>&lt;u&gt;</code>Main Pump and Outflow Combination Tubing<code>&lt;/u&gt;</code>
This combination tubing set includes the main pump tubing as well as a single-use outflow set. This tubing set is designed to minimize packing waste and reduce inventory tracking at a lower price due to savings on packaging.

<code>&lt;u&gt;</code>Main Pump Tubing<code>&lt;/u&gt;</code>
The main pump tubing set is for those who prefer a complete tubing set on the inflow side and want to replace the fluid bags after each case. Each tube set comes with an independently packaged press-fit luer lock to allow for tubing length adjustment if used in conjunction with the extension tubing. If used alone, the set must be discarded after each use.

<code>&lt;u&gt;</code>ReDeuce™ Combination Tubing<code>&lt;/u&gt;</code>
Combining the patient-side, single-use ReDeuce tubing with the outflow tubing results in less waste, reduced inventory tracking, and a lower price due to the savings in packaging.

<code>&lt;u&gt;</code>ReDeuce Pump Tubing<code>&lt;/u&gt;</code>
The ReDeuce 2-piece tubing system facilitates usage of the main pump tubing for the entire surgical day by replacing an economical 10-foot extension piece after each procedure. Touch-proof connectors and a backflow restriction valve in the extension piece maintain main tubing sterility during extension tubing replacements.

<code>&lt;u&gt;</code>Extension Tubing<code>&lt;/u&gt;</code>
This unique tubing provides an economical option to reduce tubing costs by allowing the main pump tubing to remain in use for the entire surgical day. The exclusive backflow valve prevents contaminated fluid from reaching the main pump tubing. The main pump tubing and fluid bags no longer need to be discarded after each surgical case.

<code>&lt;u&gt;</code>Y-Tubing Adapter<code>&lt;/u&gt;</code>
The optional Y-tubing adapter allows 4 fluid bags to be attached to either the main pump tubing or the ReDeuce pump tubing, which means fewer fluid bag changes.
By controlling both aspects, distention is maintained at the highest level, resulting in maximum visualization.

DualWave™ Tubing Options

Rollenpumpen-Schlauch mit integriertem Patienten-Endschlauch für AR-6450, AR-6475 und AR-6480, VE10, steril, SU

Tubagem de extensão, 183 cm (caixa de 20)

ReDeuce Pump Tubing w/Connector, 8' Long

Reduce Rollenpumpenschlauch mit Konnektor

Redeuce Pump Tubing w/connector, 8'' long

DualWave Outflow Cassette/Tube Set, sterile, qty. 10, SU

DualWave ''Outflow'' Schlauchsystem/Kassette

DualWave Outflow Tube Set, w/ReDeuce Tubing System

DualWave Outflow Tube Set with ReDeuce Tubing System

ReDeuce Patient Tubing w/Connector, 8' Long

Redeuce Patient Tubing w/connector, 8'' long

ReDeuce, tubos del paciente con conector, 20,3 cm de longitud

"Espigão duplo de adaptador de tubagem em ""Y"""

Sheath System, In-/Outflow 2 Stopcock for 4 mm Scope

I/O SHEATH SET F/SYN 4MM SCOPE; PART A&amp;B

Conical Obturator for In/Outflow Synergy 4 mm Scope Sheath

Konischer Obturator für 4.0 mm Optik-Arthroskopschaftsystem I/O

Obturator conical for 4.0 mm Scope Sheath System I/O

Obturador cónico para sistema de vaina de óptica deentrada/salida de Ø4.

Obturador cónico para E/S de 4.0 mm do sistema de bainha de endoscópio

I/O Sheath Set for Synergy 3 mm Scope; Part A &amp; B

I/O SHEATH SET F/SYN 3MM SCOPE; PART A&amp;B

Conical Obturator for In/Outflow Synergy for 3 mm Scope Sheath

Konischer Obturator für 3.0 mm Optik-Arthroskopschaft Inflow/Outflow

Conical Obturator for In/Outflow, Synergy 3 mm Scope Sheath

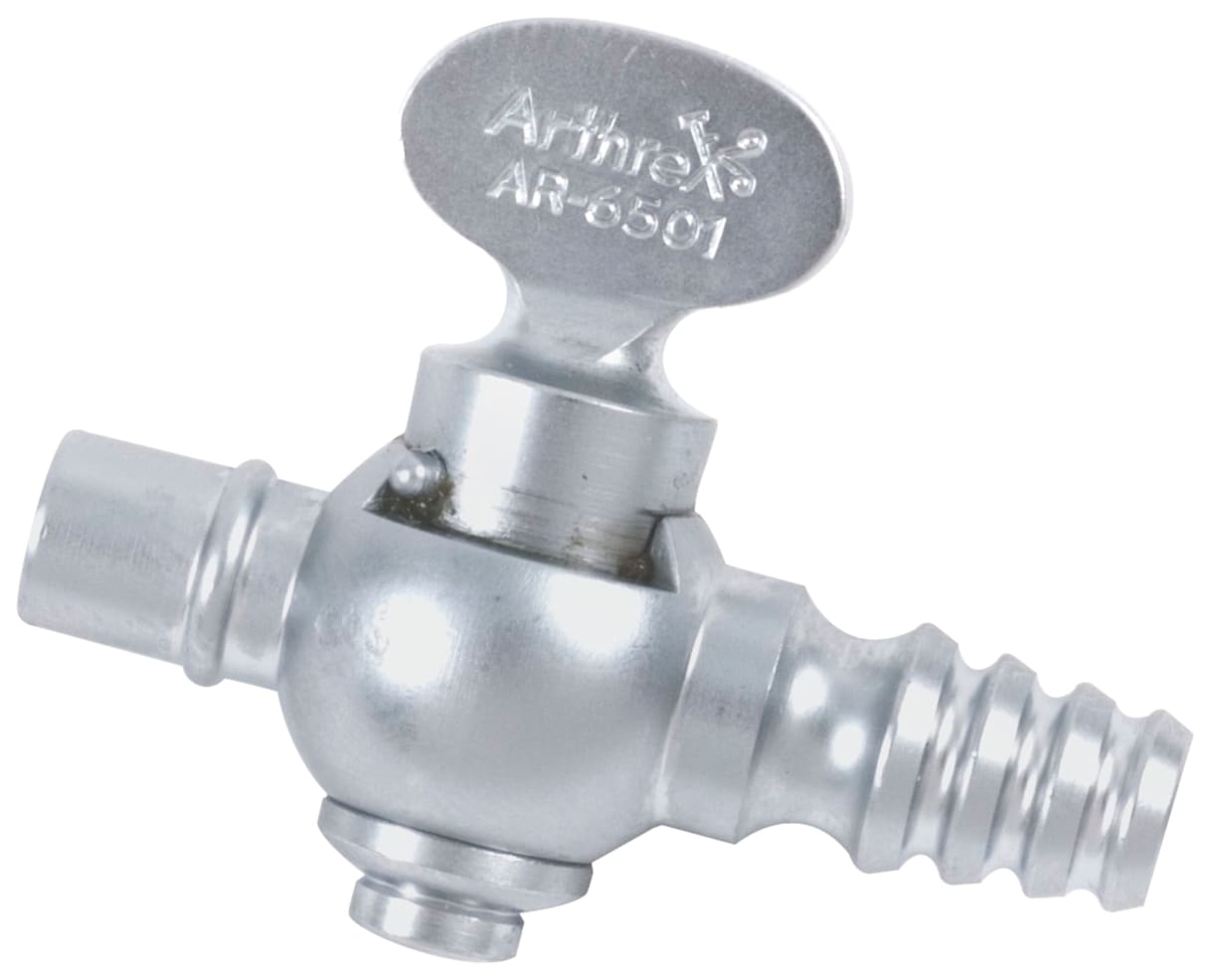

Valve for Inflow Cannula, qty. 2

AR-6501
