Finished Product

8088-100

Human

Trauma Lower Extremities

Product

The Arthrex Proximal Tibia Plating System builds on the Titanium Distal Tibia Plating System with the addition of lateral and posteromedial proximal tibia plating options, plateau-specific instruments, and longer screws. All plates accept 4.0 mm fixed-angle locking, 3.5 mm variable-angle locking, and 3.5 mm cortical screws.&nbsp;A T10 driver can be used for all screw sizes.

System Features:
<ul>
 <li>Titanium alloy plates and screws</li>
 <li>Variable-angle capabilities in all holes</li>
 <li>Snap-in guides save time when drilling nominal-angle screws</li>
 <li>Variable-angle drill guide allows for percutaneous screw insertion through the sleeve</li>
 <li>Color-coded implants: left plates are blue, right plates are rose</li>
</ul>
Lateral Plate
<ul>
 <li>Percutaneous carbon fiber jig (targeting arm) available for a minimally invasive technique</li>
 <li>K-wire holes throughout the plate assist provisional placement and fracture reduction</li>
 <li>Multiple length options from 2 to 14 holes</li>
</ul>
Posteromedial Plate
<ul>
 <li>Plate wraps from posterior to medial to facilitate incision</li>
 <li>Available in 4-, 5-, and 8-hole lengths</li>
</ul>
&nbsp;

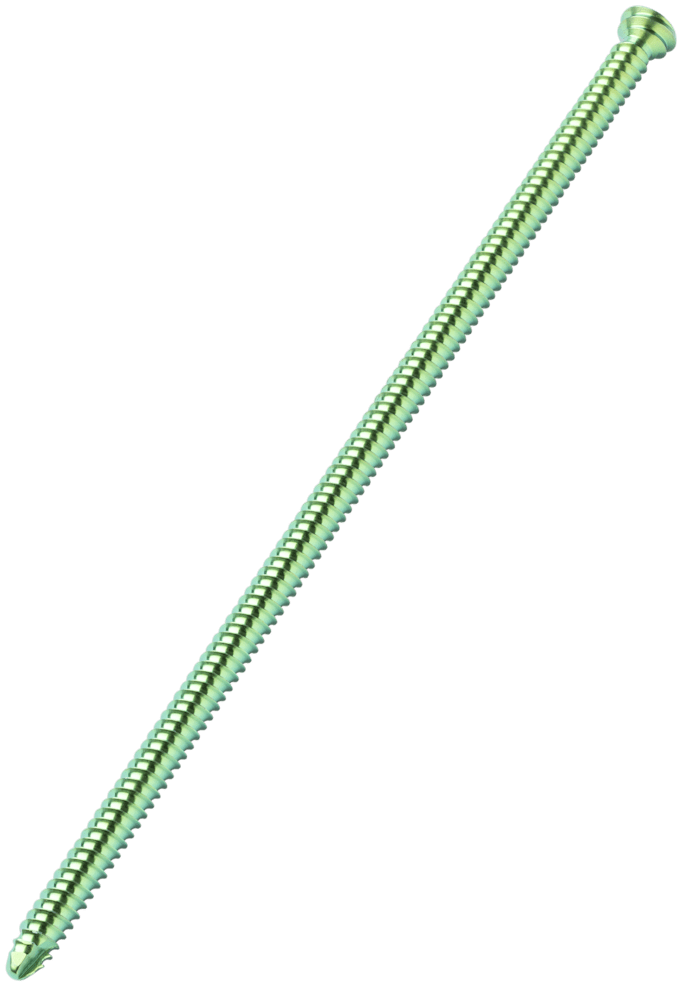

VAR ANGLE LOCKING SCREW, Ø3.5mm x 100mm

8088-100

Add to Cart
