Synergy Hip Scopes and Sheaths

Arthrex's Synergy Hip Arthroscopes and Sheath System feature several benefits. The scopes are available in both eye-coupler and C-mount options. The scopes have a 3.5 mm outer diameter (OD) compared to an industry standard 4 mm. This allows the high-flow sheath to have an OD of 5.2 mm versus the typical 6 mm sheath. Decreasing the OD provides more room to maneuver within the hip. The tapered tip of the sheath aids in gaining access into the hip joint, along with the cannulated obturator. The working length of the hip scopes are 202 mm and 204 mm for the 30° and 70° respectively. This extended length allows full access into the majority of patients without the need to use the typical competitive extended length scope (300 mm). The eye-coupler design is compatible with the StarFish™ scope rotation attachment.

View More

Arthrex's Synergy Hip Arthroscopes and Sheath System feature several benefits. The scopes are available in both eye-coupler and C-mount options. The scopes have a 3.5 mm outer diameter (OD) compared to an industry standard 4 mm. This allows the high-flow sheath to have an OD of 5.2 mm versus the typical 6 mm sheath. Decreasing the OD provides more room to maneuver within the hip. The tapered tip of the sheath aids in gaining access into the hip joint, along with the cannulated obturator. The working length of the hip scopes are 202 mm and 204 mm for the 30° and 70° respectively. This extended length allows full access into the majority of patients without the need to use the typical competitive extended length scope (300 mm). The eye-coupler design is compatible with the StarFish™ scope rotation attachment.

View More

Educational Resources and Products

Overview of Hip Joint Access Featuring the Synergy Extended Length Hip Arthroscope System

Benjamin G. Domb, MD
Product Demonstrations | 15:15 | English | 07/28/2017 | VID1-01119-EN A

Improving Surgery Through the Synergy Product Line at Memorial Hermann

Memorial Hermann Surgery Center Staff
Testimonials | 03:41 | English | 11/02/2018 | VID1-01284-EN C
Imaging & Resection New Product & Technique Highlights
Product and Technique Highlights | English | 04/27/2022 | LB1-000364-en-US B
Videos
(2)
arrow_drop_down
Videos
Documents
(5)
arrow_drop_down
Documents
English
(7)
arrow_drop_down
Languages

Brochures (2)

SynergyUHD4
Spanish | 08/13/2018 | LB1-00007-ES H

Catalogs (1)

Product Demonstrations (1)

Overview of Hip Joint Access Featuring the Synergy Extended Length Hip Arthroscope System
Benjamin G. Domb, MD
15:15 | English | 07/28/2017 | VID1-01119-EN A

Product and Technique Highlights (1)

Imaging & Resection New Product & Technique Highlights
English | 04/27/2022 | LB1-000364-en-US B

Testimonials (1)

Improving Surgery Through the Synergy Product Line at Memorial Hermann
Memorial Hermann Surgery Center Staff
03:41 | English | 11/02/2018 | VID1-01284-EN C

User Manuals (2)

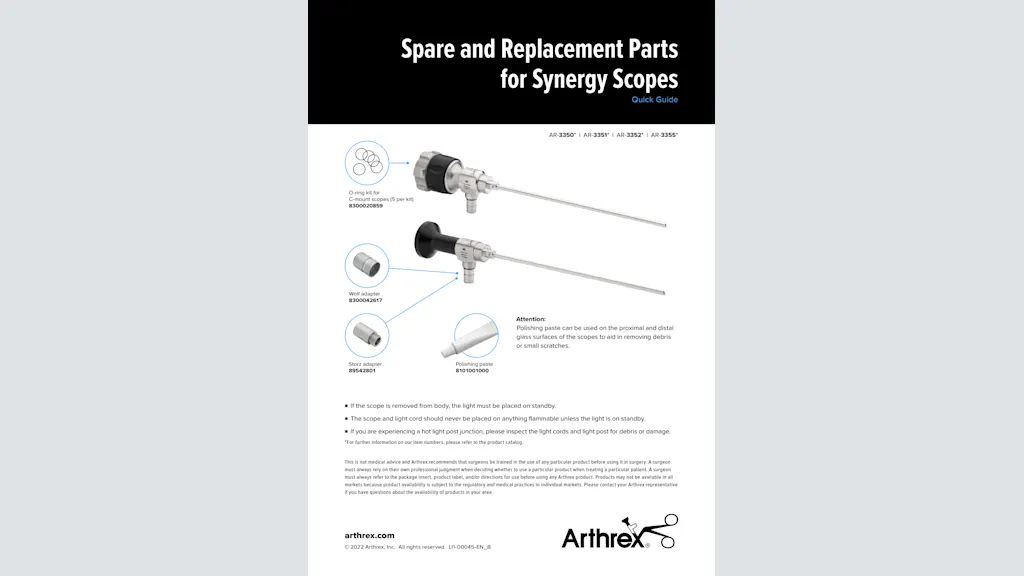

Spare and Replacement Parts for Synergy Scopes
English | 07/27/2022 | LI1-00045-EN B

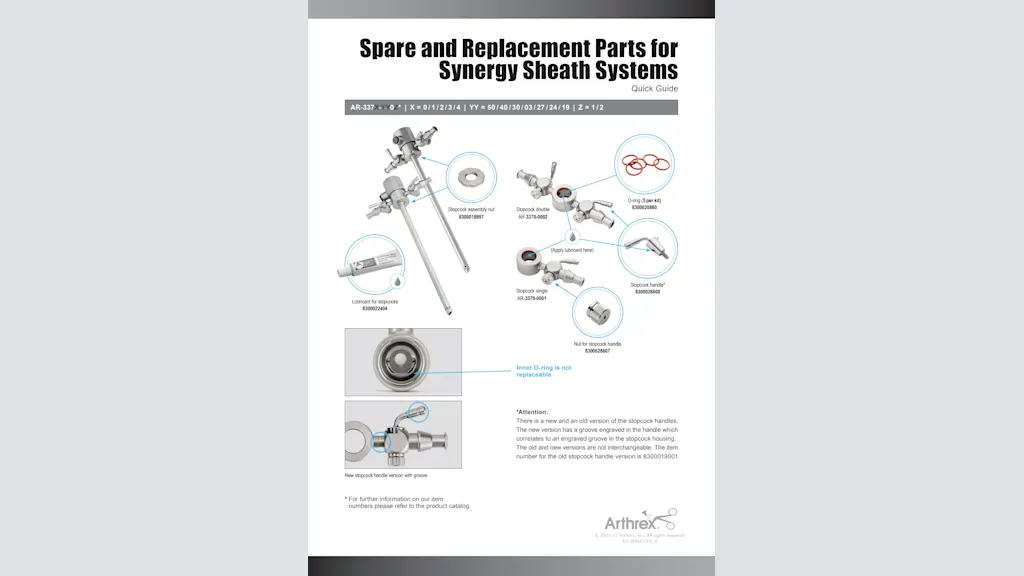

Spare and Replacement Parts for Synergy Sheath Systems
English | 08/25/2017 | LI1-00043-EN A
