Rodilla

Sutura FiberSnare®

La nueva sutura FiberSnare con lazo más grande se ha diseñado específicamente para brindar comodidad y facilidad de uso al mover suturas durante los procedimientos de reconstrucción y reparación de ligamentos. La sutura FiberSnare tiene una longitud total de 26” y su construcción consta de una sutura FiberWire® n.° 2 con un lazo de 2” en un extremo, mientras que el extremo opuesto tiene una rigidez de 12 pulgadas.&nbsp;
Las suturas FiberSnare se pueden utilizar tanto para técnicas de perforación retrógrada (de afuera hacia adentro) como anterógrada (de adentro hacia afuera) como sutura de traslado. Los nuevos patrones de color exclusivos (sutura a rayas negra/blanca y blanca/azul) también permiten una identificación y manejo más sencillos de las suturas.

Knee

Michael J. Alaia, MD (New York, NY), demonstrates a BTB ACL reconstruction with the InternalBrace™ technique using FastThread™ screws and the FiberSnare® guidewire for independent fixation.
The InternalBrace surgical technique is intended only to augment the primary repair/reconstruction by expanding the area of tissue approximation during the healing period and is not intended as a replacement for the native ligament. The InternalBrace technique is for use during soft tissue-to-bone fixation procedures and is not cleared for bone-to-bone fixation.

Not Hidden

English  - en

video

Human

A video recording of a surgical technique on a live patient in an operating room setting or a cadaveric demonstration.

Eine Videoaufnahme einer Operationsanleitung an einem lebenden Patienten oder Patientin in einem Operationssaal oder eine Demonstration an einem Humanpräparat.

Operationstechnikvideos

Gravação em vídeo de uma técnica cirúrgica em um paciente em uma sala de cirurgia ou uma demonstração cadavérica.

Vídeos de técnicas cirúrgicas

Grabación en vídeo de una técnica quirúrgica de un paciente en un quirófano o una demostración cadavérica.

Videos de técnicas quirúrgicas

Surgical Technique Videos

BTB ACL Reconstruction: InternalBrace™ Technique, FastThread™ Screws, and FiberSnare® Guidewire

This animation demonstrates the technique for using the FiberSnare® nitinol guidewire to create independent fixation of FiberTape® sutures when performing BTB ACL reconstruction with the InternalBrace™ technique.&nbsp;
The InternalBrace surgical technique is intended only to augment the primary repair/reconstruction by expanding the area of tissue approximation during the healing period and is not intended as a replacement for the native ligament. The InternalBrace technique is for use during soft tissue-to-bone fixation procedures and is not cleared for bone-to-bone fixation.

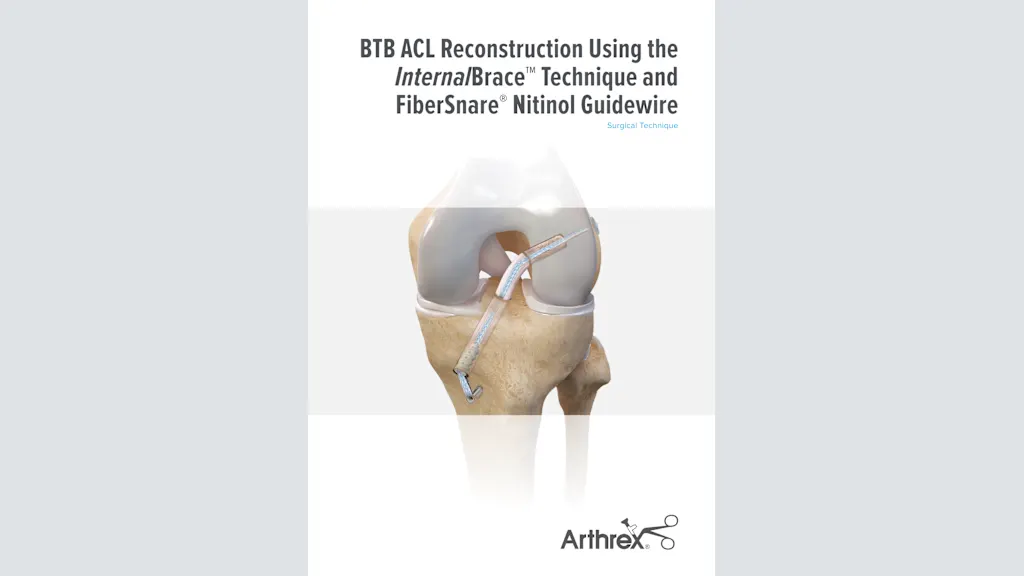

BTB ACL Reconstruction Using the InternalBrace™ Technique and FiberSnare® Nitinol Guidewire

Following completion of tunnel drilling, a fiber snare shuttle suture is placed to facilitate graft passage, identify the white tightrope tensioning sutures and the blue tightrope passing sutures, and load all four ends into the loop of the fiber. Snare shuttle suture using the fiber snare suture, shuttle the tightrope tube implant through the joint and out of the femur. Confirm the button is flipped on the lateral femoral cortex by pulling distally on the fiber tape. Sutures for the internal brace technique. Prior to introducing the graph to the tibial tunnel, retrieve the fiber tape sutures through the passport button cannula. Advance the graft by pulling the tensioning strands one at a time, alternating approximately two centimeters on each side. When the femoral bone block is visible in the joint, align the bone block with the femoral tunnel using a grasper. Once the femoral bone block is flush with the lateral wall of the notch, pull firmly back on the graft to check fixation. Introduce the fiber snare. Nitinol, guidewire up the tibial tunnel between the tibial bone block and tunnel wall until it is visible in the joint. Retrieve the fiber snare shuttle suture out of the passport button cannula. Prepare the tibial tunnel using the appropriately sized fast thread interference screw tab by inserting to a depth that approximates the screw length implant the appropriately sized fast thread interference screw over the guidewire. Outside the passport button cannula. Place the round ends of the fiber tape suture for the internal brace technique into the loop of the fiber. Snare shuttle suture. Remove the nitinol guidewire from the tibial tunnel and gently pull the attached fiber. Snare suture distally in line with the tunnel by hand to shuttle the round ends of the fiber. Tape sutures through the cancellation of the fast thread interference screw. Once both limbs of fiber tape have been retrieved, remove slack by pulling them one at a time as to avoid pulling the round, a flat transition of both limbs through the screw simultaneously. It's recommended to use the secondary fixation implant system for fixation for the fiber tape. Sutures for the internal brace technique using the spade tip drill, followed by the 5.2mm tap, and with the knee in full extension. Place the graft, sutures and internal brace fiber. Tape sutures into the eyelet and screw the swivel lock. Anchor into the pilot hole. Remove the driver and retention suture from the anchor. After the knee is cycled several times with the knee in full extension, the tightrope tube B2B implant can be retensioned to remove any slack in the construct. Cut the tensioning tails flush to complete the construct.
